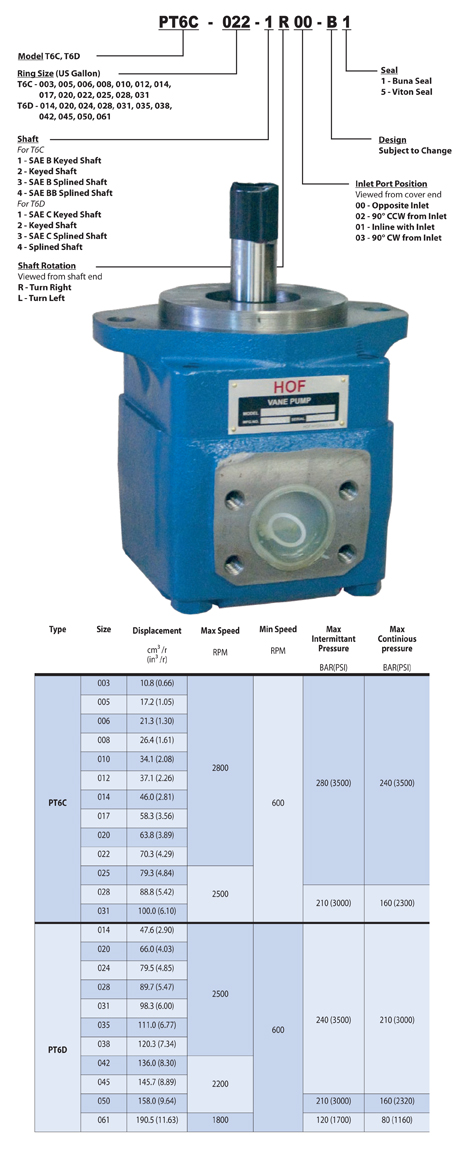

High Pressure Single Vane Pump PT6C/PT6D Series

For more information on the High Pressure Single Vane Pump PT6C/PT6D Series
– call SJA Hydraulics on (07) 3889 3922 or click here to contact us via email.
High Pressure Single Vane Pump PT6C/PT6D Series

Features

PT6C and PT6D Series are fixed displacement and balanced type single vane pumps. The pump is designed for higher operating pressure and greater flow at the same housing size.

With a balanced pin-vane design, outlet pressure is continuously applied only to the pin. The pin provides the steady light force against the vane. Top and bottom areas of the vane are subject to the same pressure, either inlet or outlet pressure, depending on the vane’s location during rotor rotation. The pin-vane minimizes noise level and and improves volumetric efficiency.

The cartridges independence of the shaft allows for easy change of flow capacity and feild servicing without removing the pump from its mounting.
